Project Description: This project was one of the first proper Solidworks assignments. The aim of this project was to disassemble a product, measure each part using a digital caliper, recreate each part on Solidworks, and then reassemble the product. After recreating it on Solidworks through parts and assembly, it was then represented in Engineering A2 AS1100 Landscape Drawing Sheets. In this case, the product that was disassembled was a handheld stick blender.

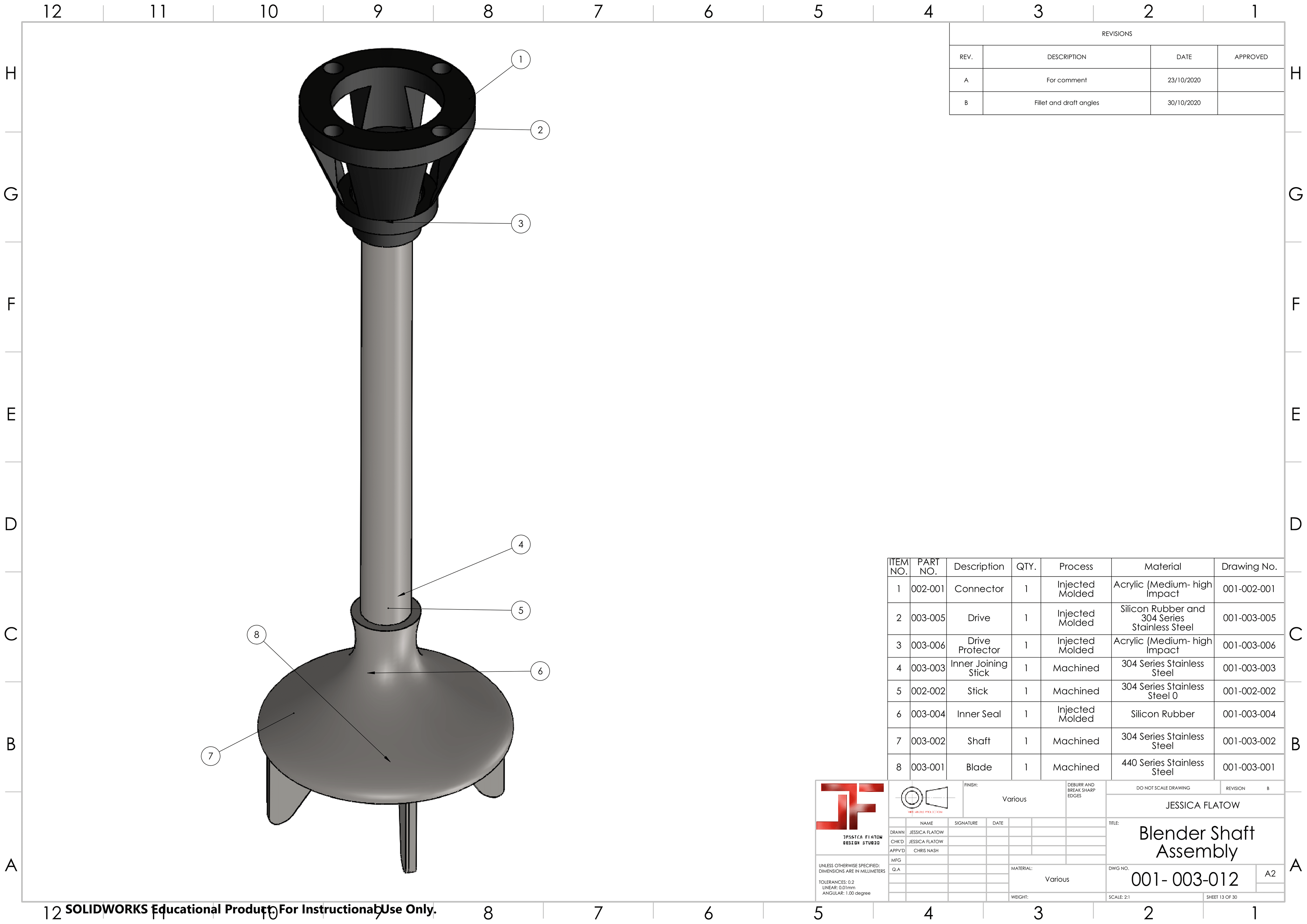

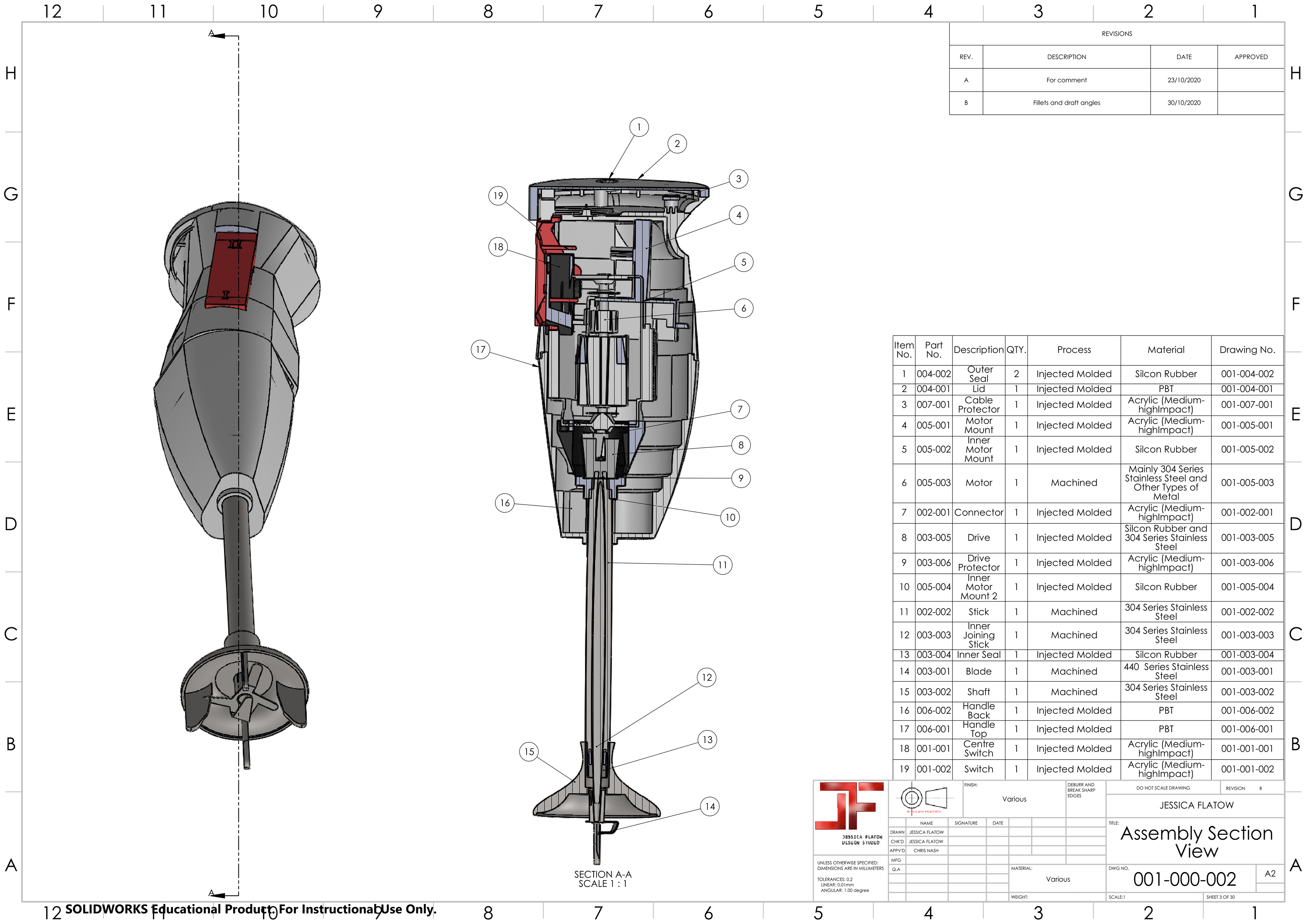

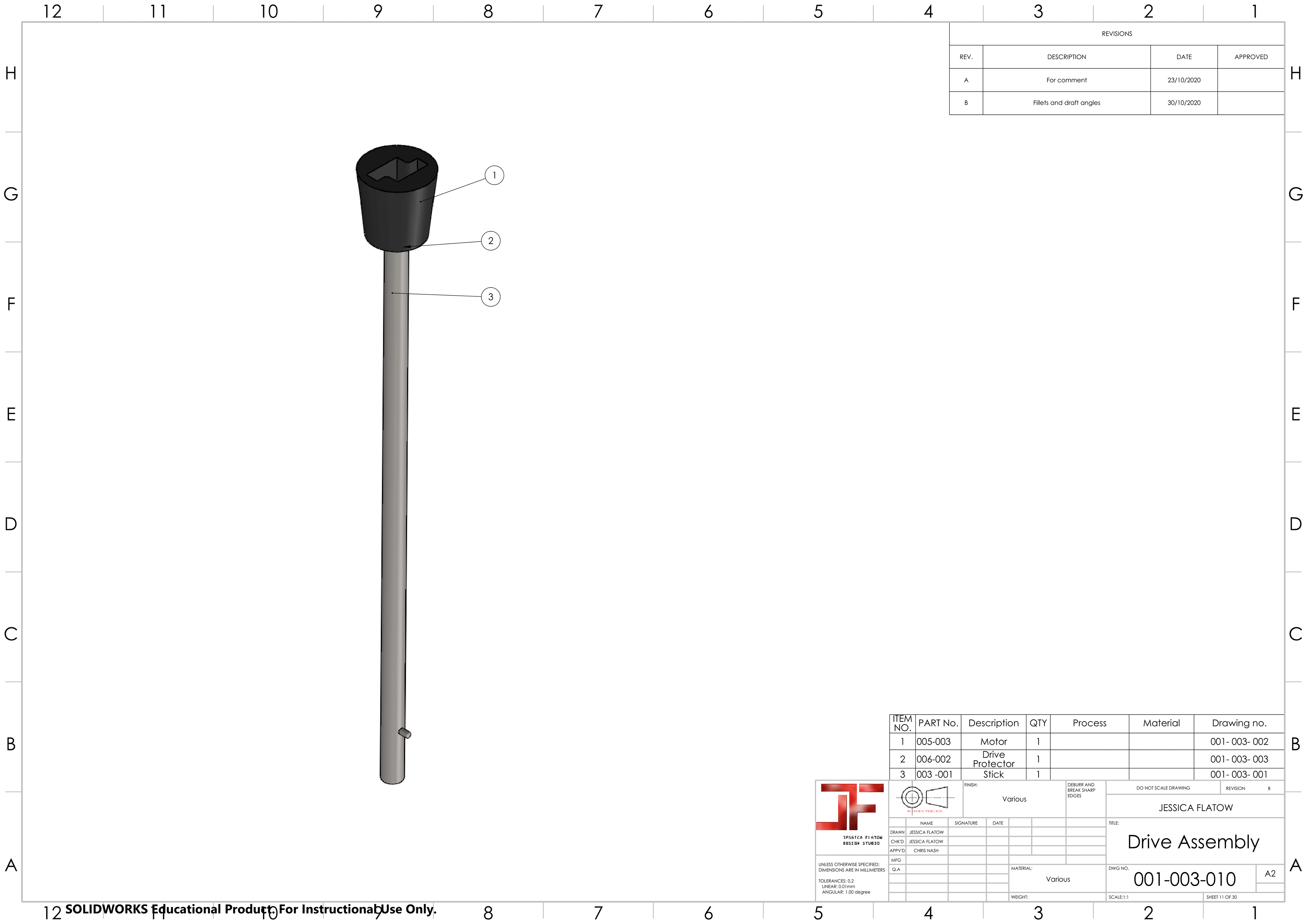

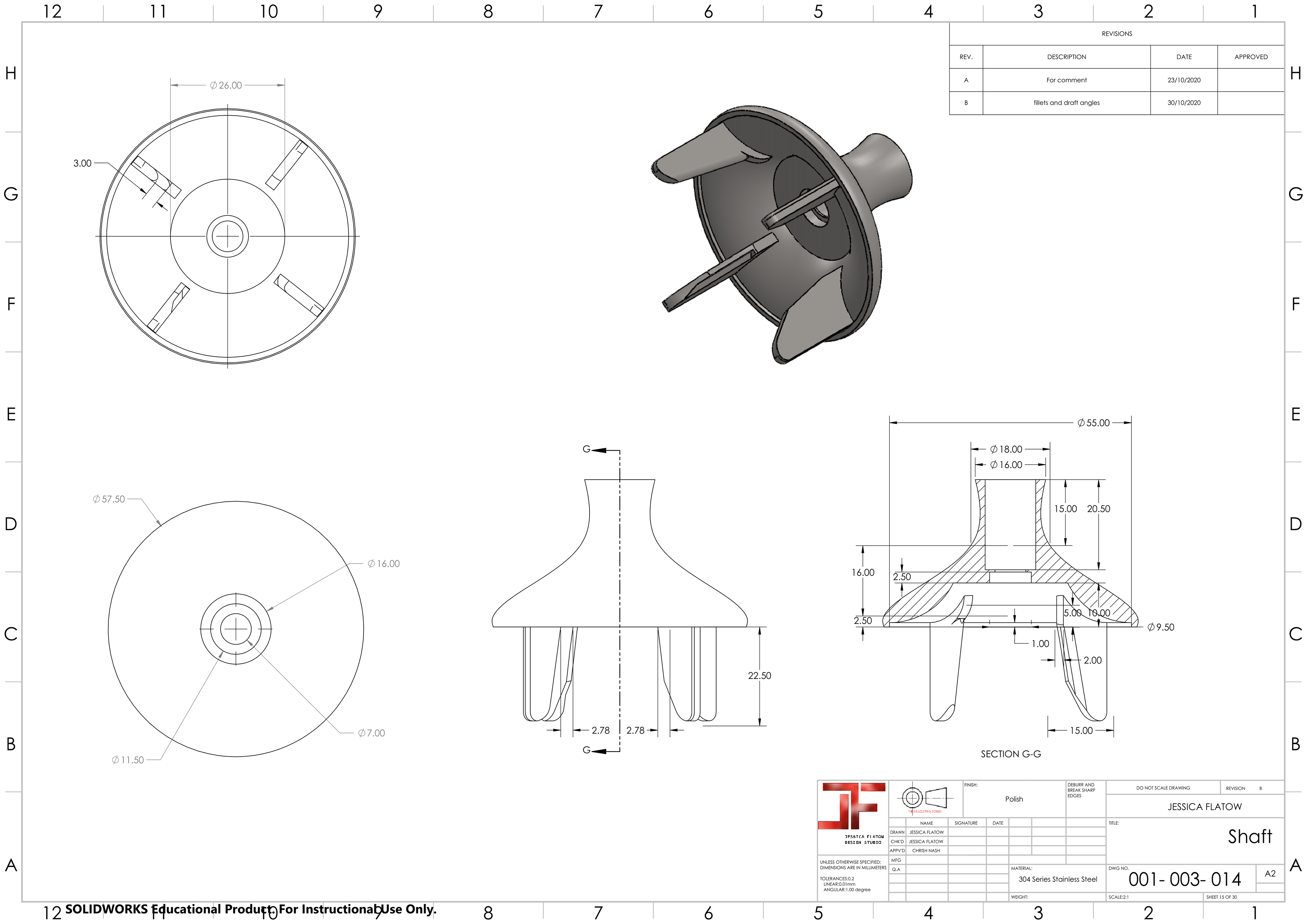

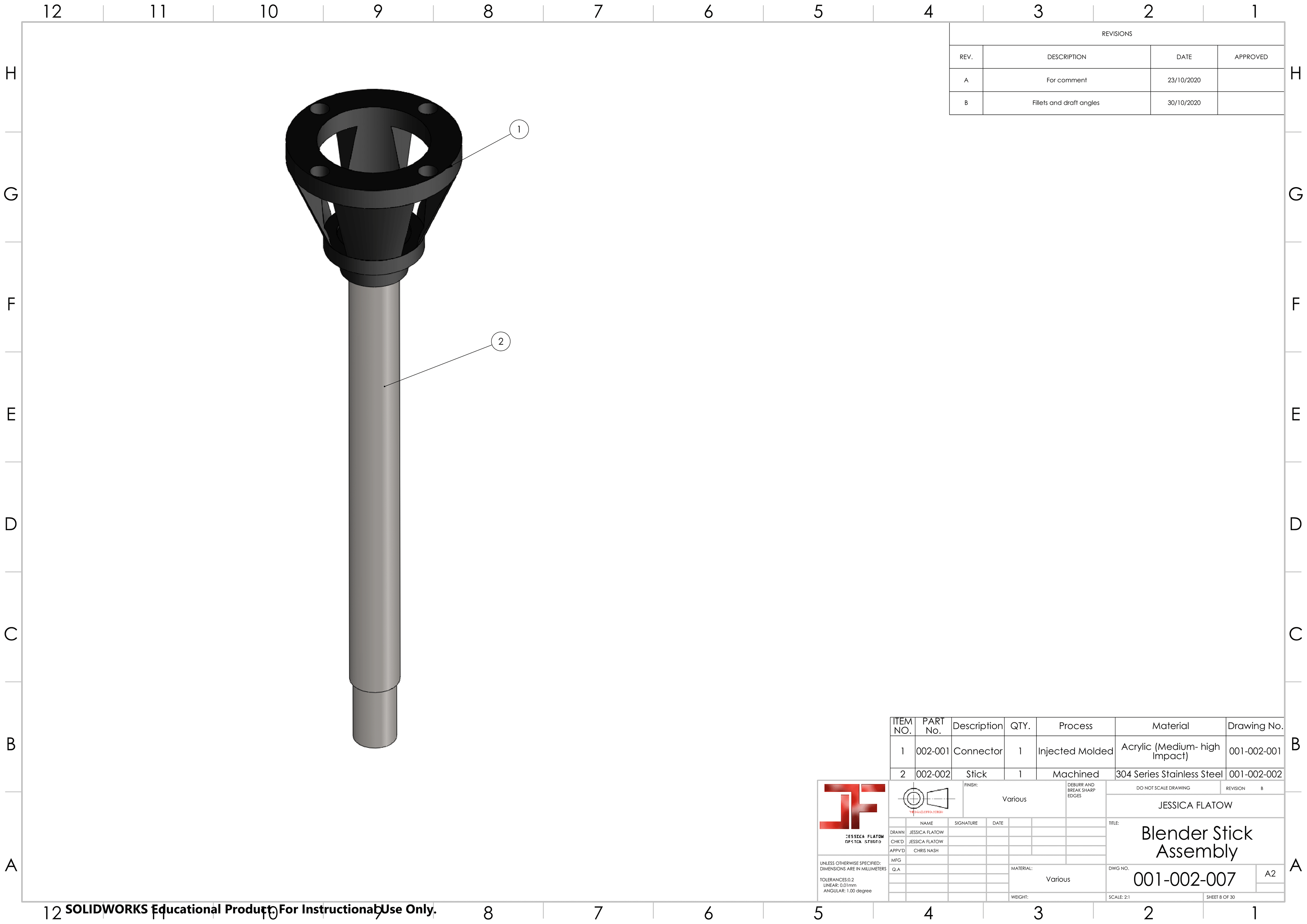

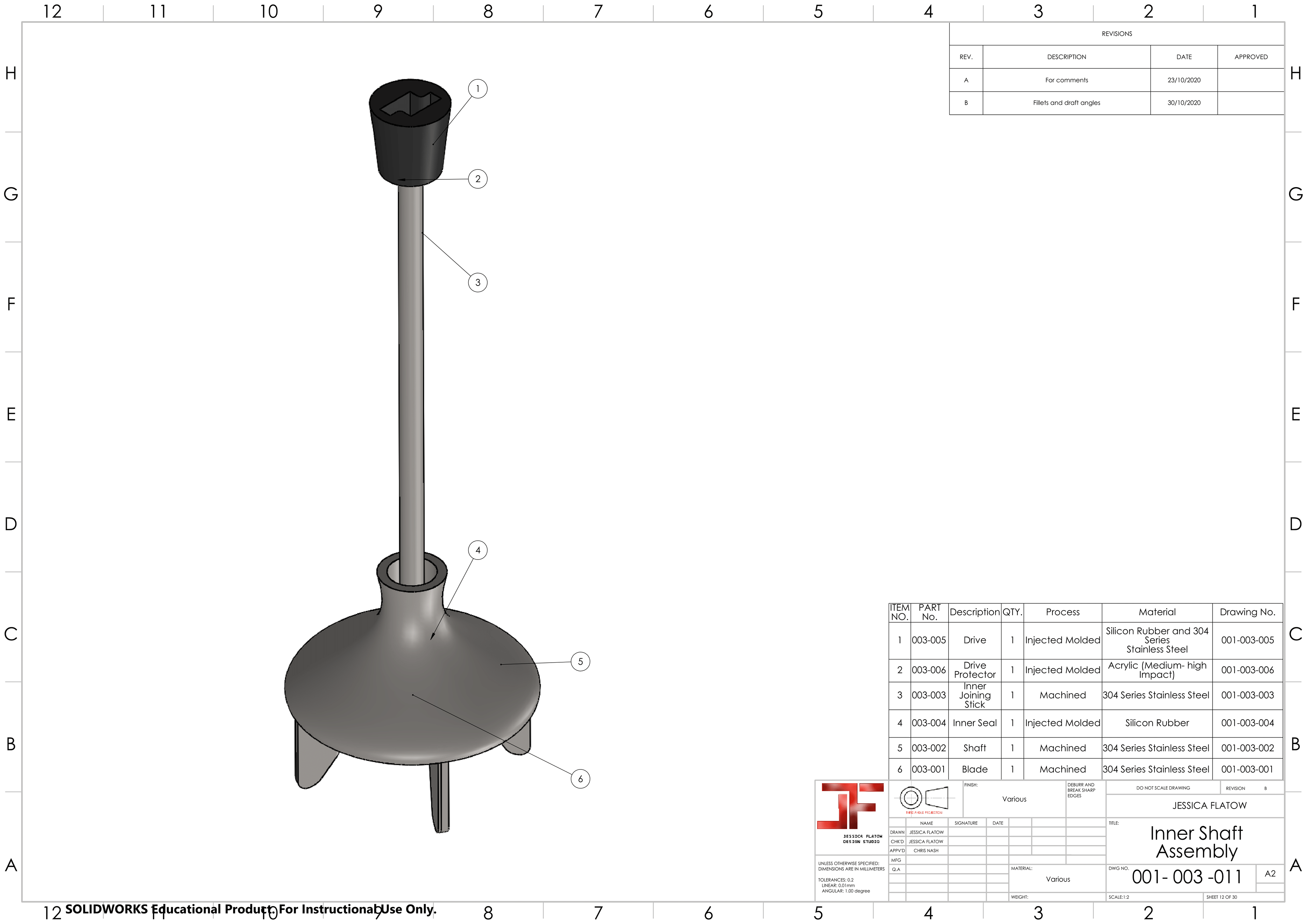

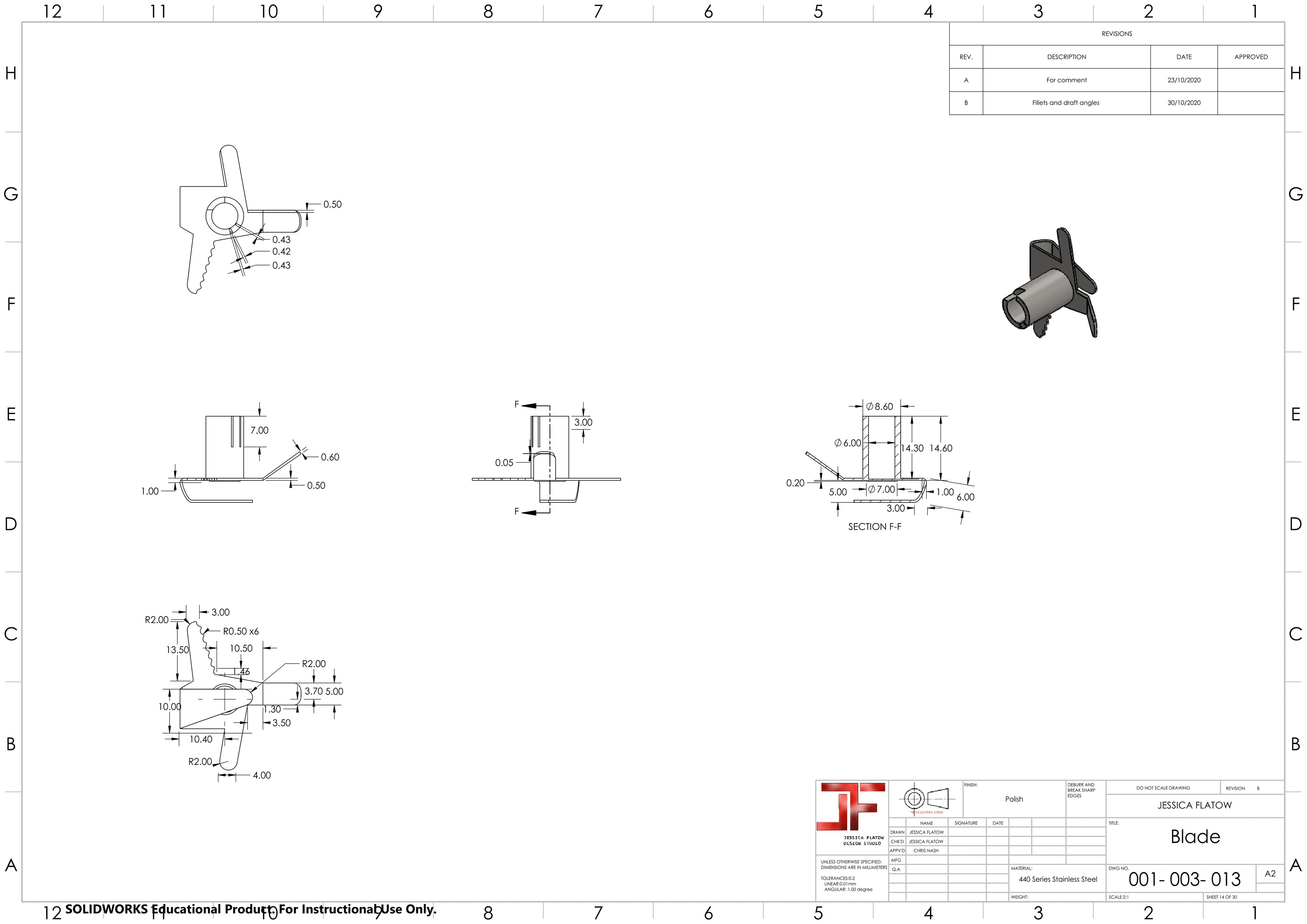

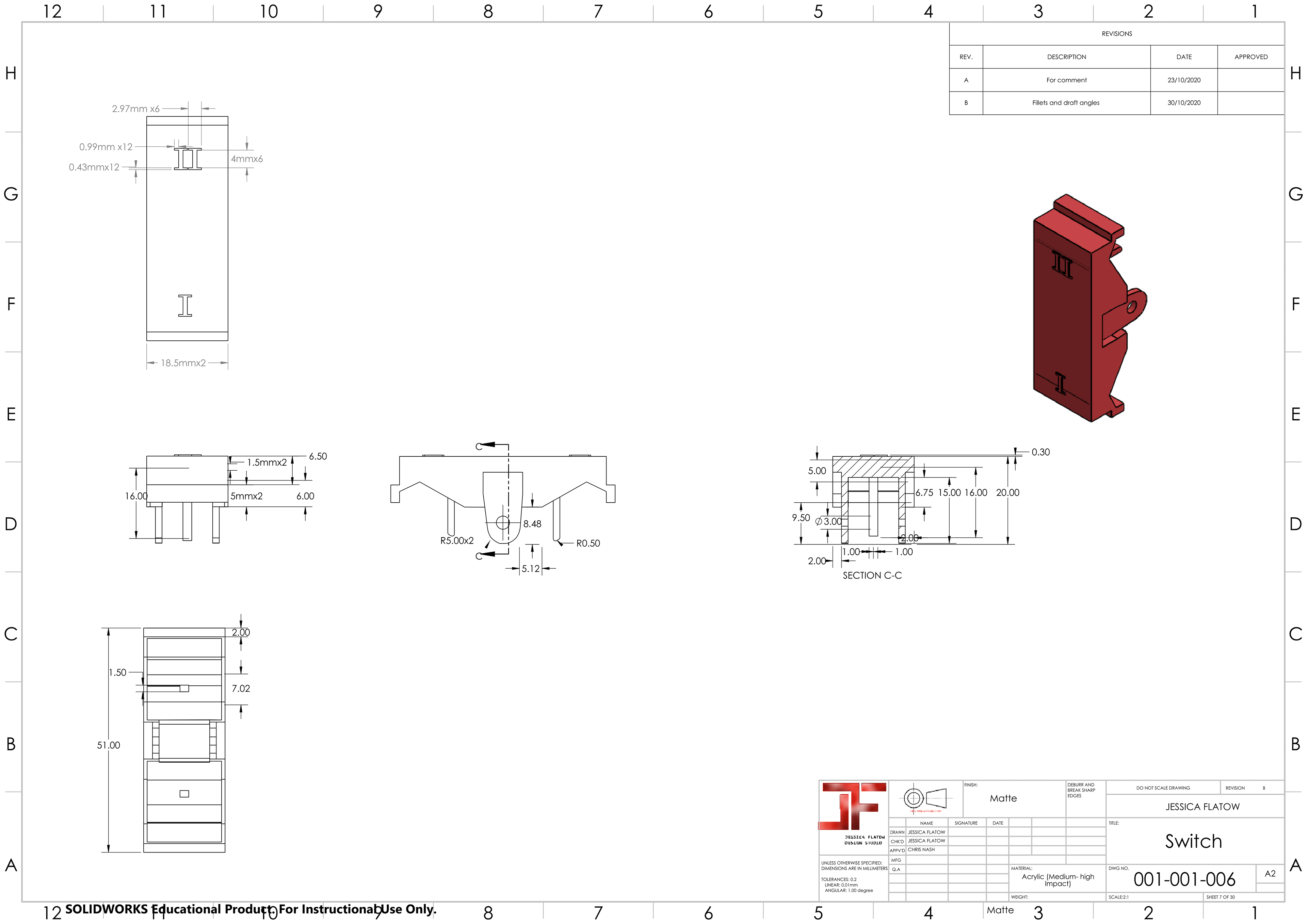

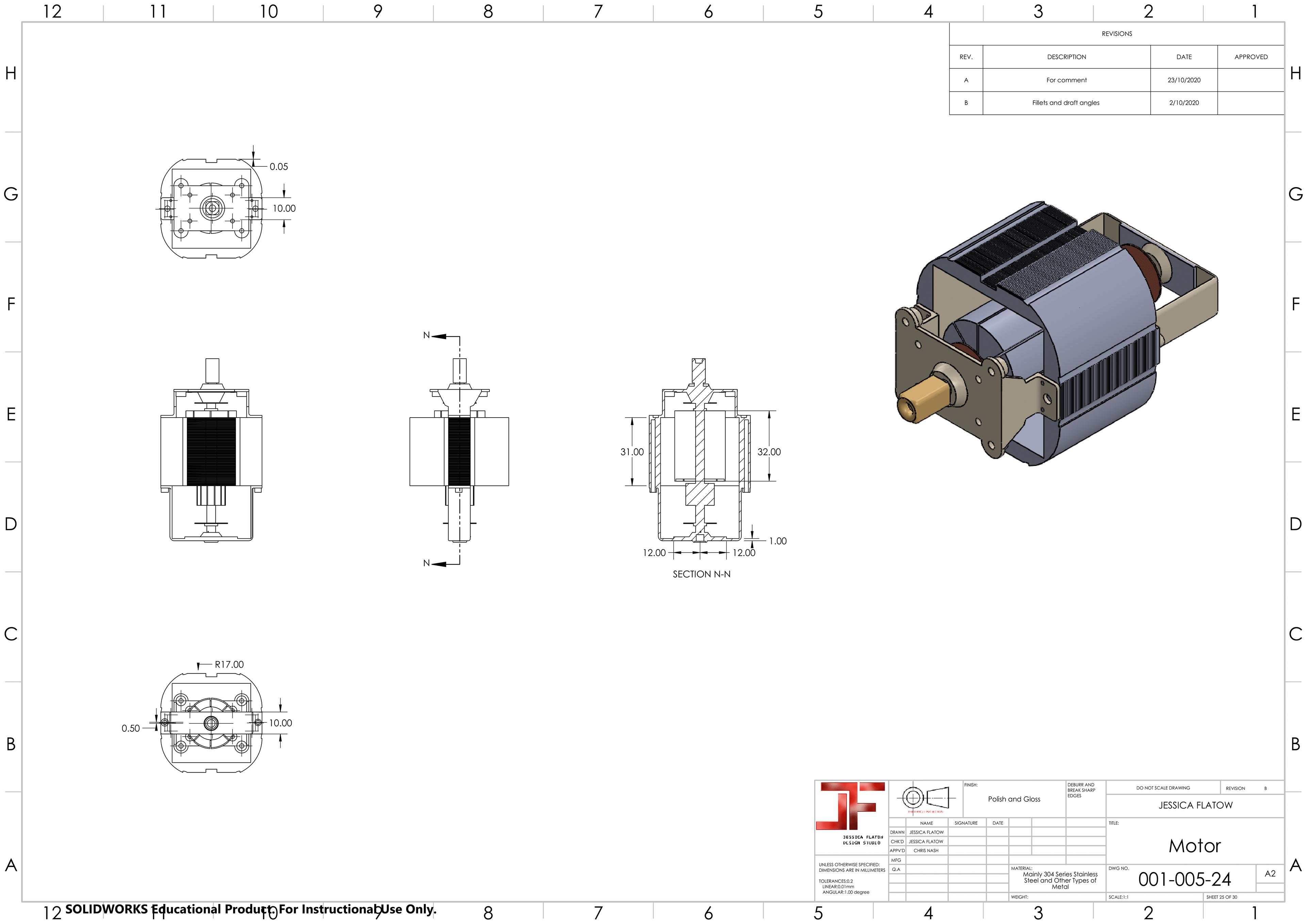

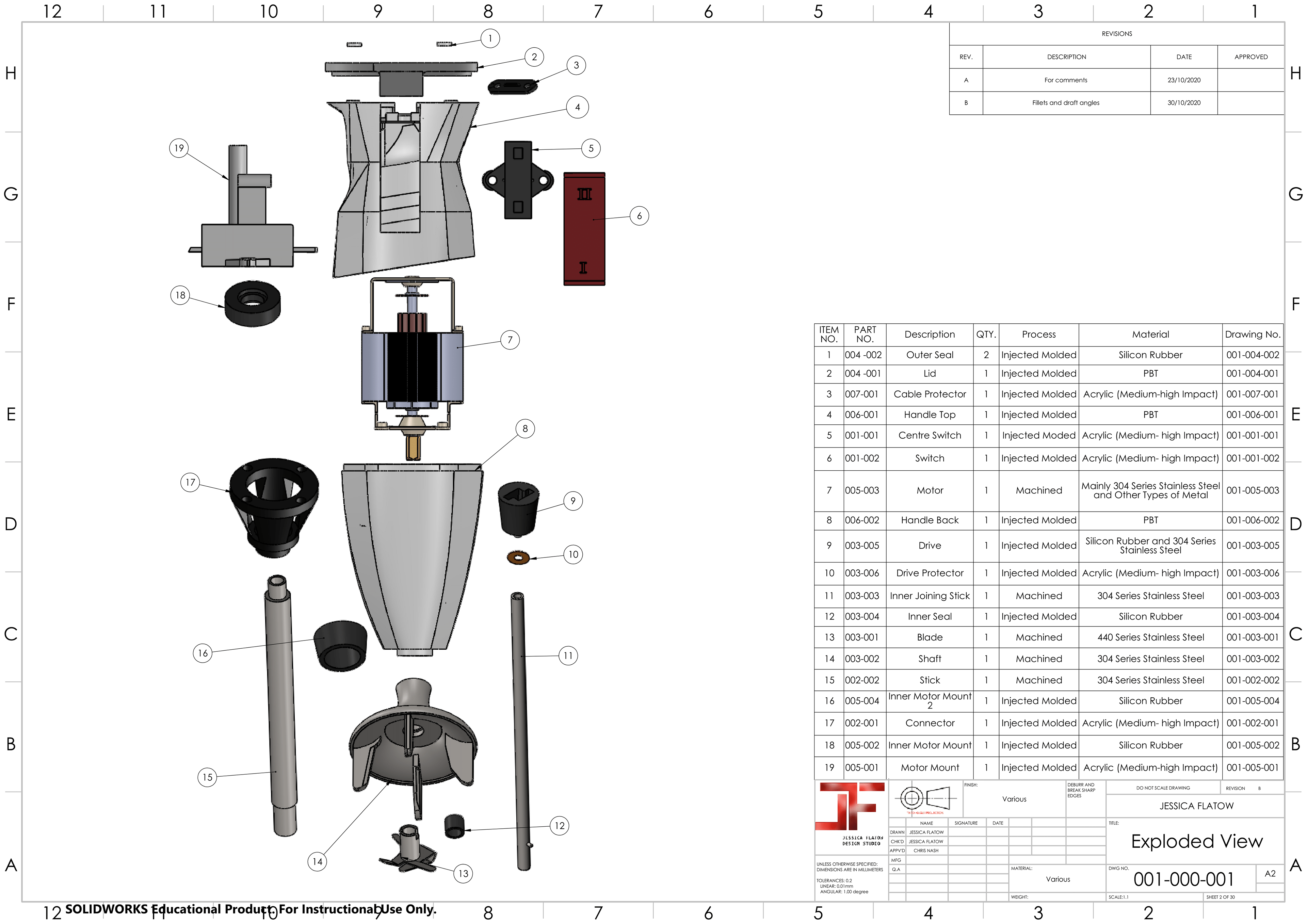

Engineering AS1100 Drawing Sheets:
